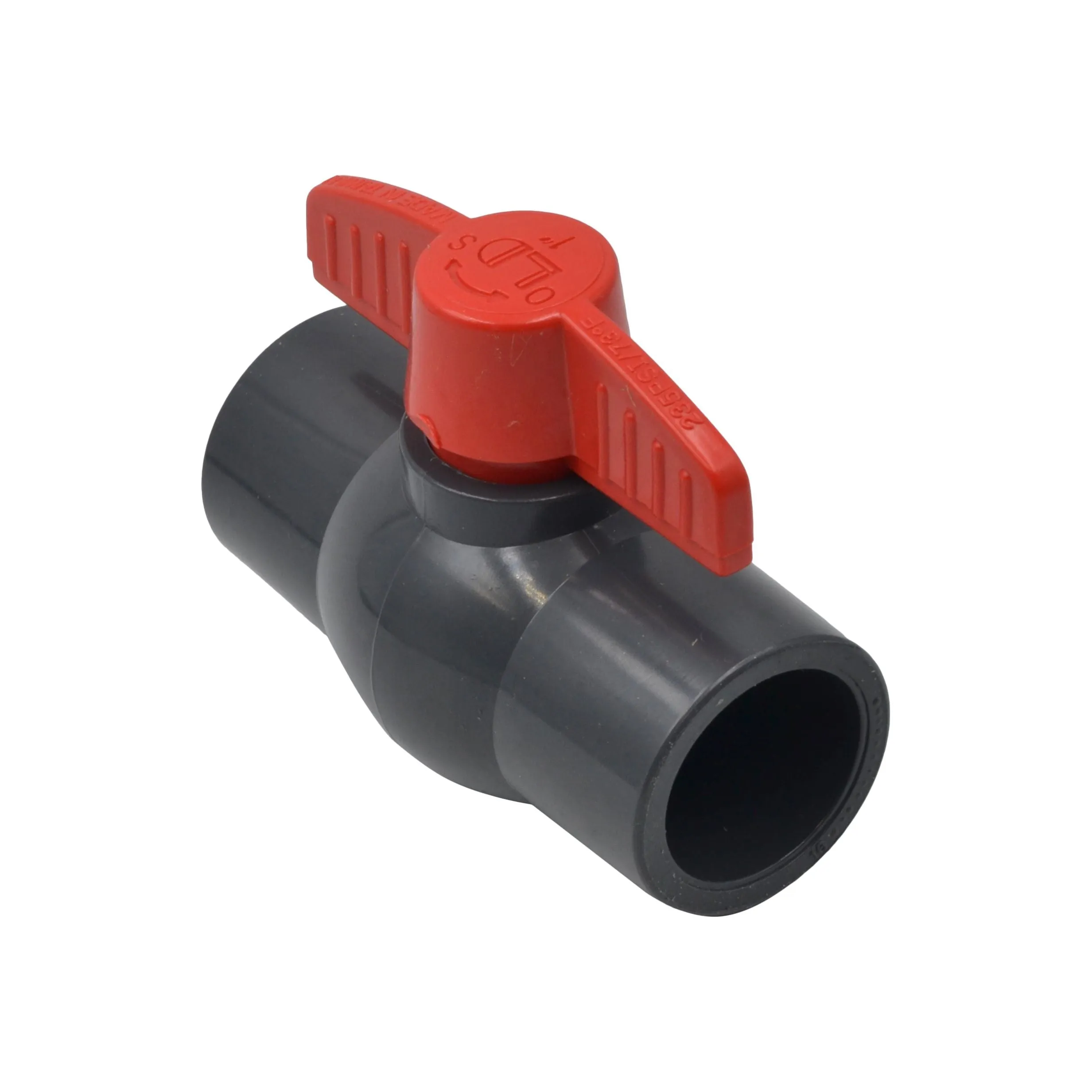

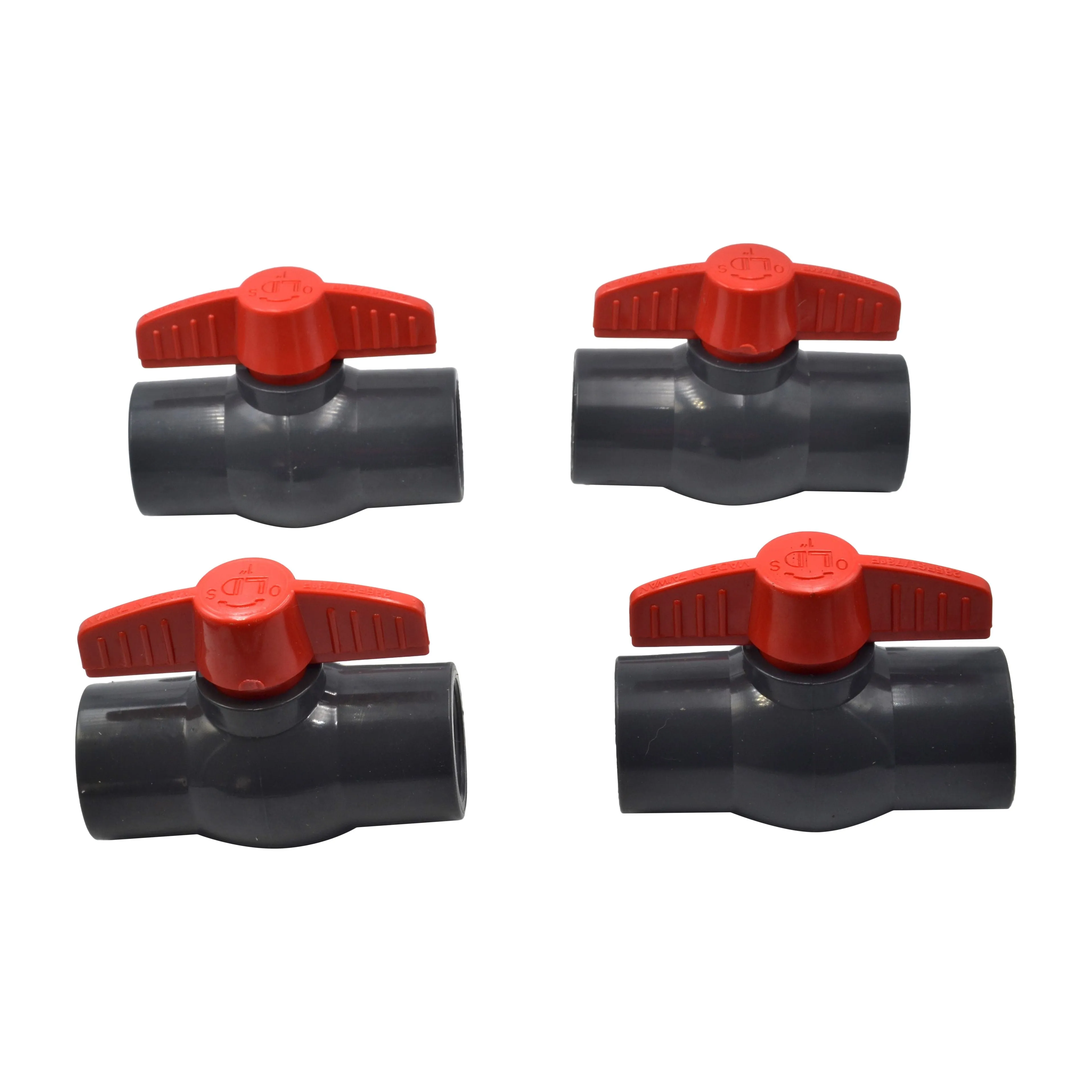

x4 1" Slip Join Ball Valve
Designed with a UV-resistant additive, these PVC fittings effectively protect against the damaging effects of sunlight and other ultraviolet sources. Without this additive, the molecular structure of the PVC can be compromised, resulting in yellowing, cracking, and brittleness. Furthermore, these durable fittings are impact-proof and can endure substantial drops without cracking or breaking.
PRODUCT FEATURES :
- PVC Ball valve size:1"=25mm
- Socket join.
- Working pressure 150 PSI.
- Ball valve material: PVC.
- Main body is molded as one-piece with welded seams.
- PVC fittings have a healthy additive that inhibits the impact of sunlight and other ultraviolet sources on the molecular structure of the PVC.
- PVC fittings can take a beating. They are designed to withstand impacts, or drops from a substantial height and will not suffer any cracks or breakage.
Application :
This product has a multitude of applications, including but not limited to use in gardens, homes, greenhouses, and lawn watering and irrigation. It is also suitable for use in aquarium tank fittings.

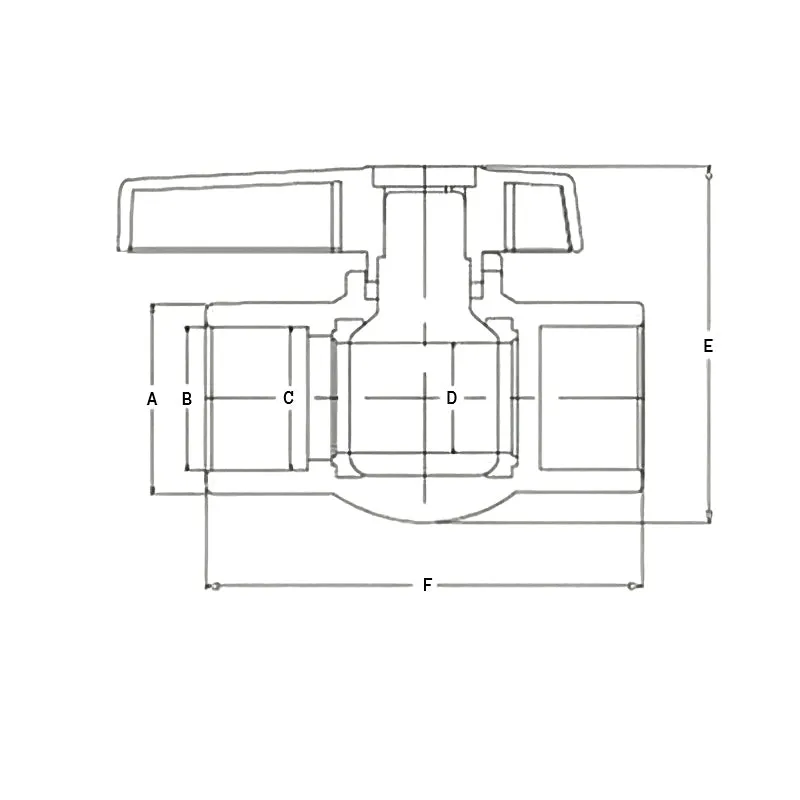

Measurement Table:
| Size: | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| ½" | 32mm | 19mm | 18mm | 15mm | 64mm | 80mm |
| ¾" | 35mm | 26.75 | 26.75 | 20mm | 72mm | 87mm |
| 1" | 44mm | 33.50 | 33.50 | 25mm | 87mm | 105mm |
| 1¼" | 55mm | 39mm | 38mm | 30mm | 102mm | 112mm |
| 1½" | 62mm | 45mm | 43mm | 35mm | 110mm | 128mm |
| 2" | 76mm | 60mm | 60mm | 50mm | 125mm | 150mm |
| 3" | 105mm | 85mm | 83mm | 60mm | 190mm | 217mm |
| 4" | 132mm | 110mm | 108mm | 85mm | 210mm | 307mm |
