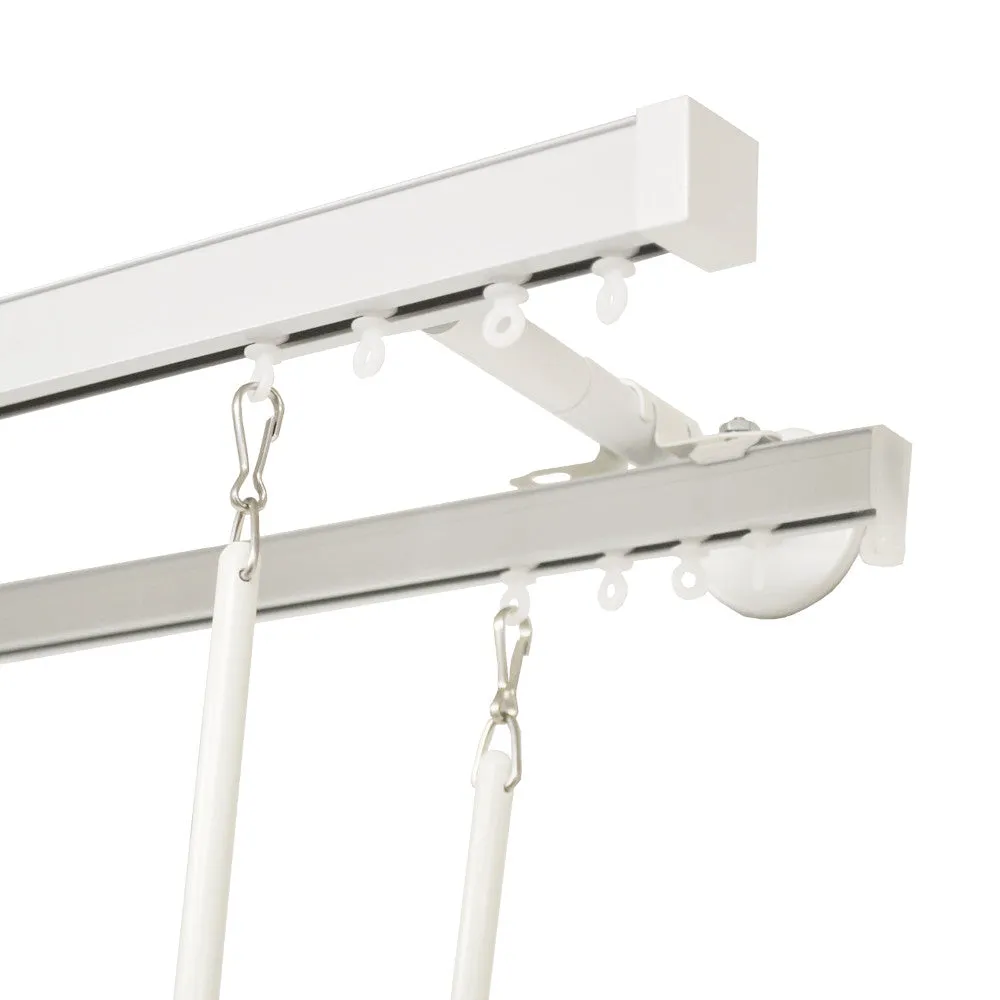

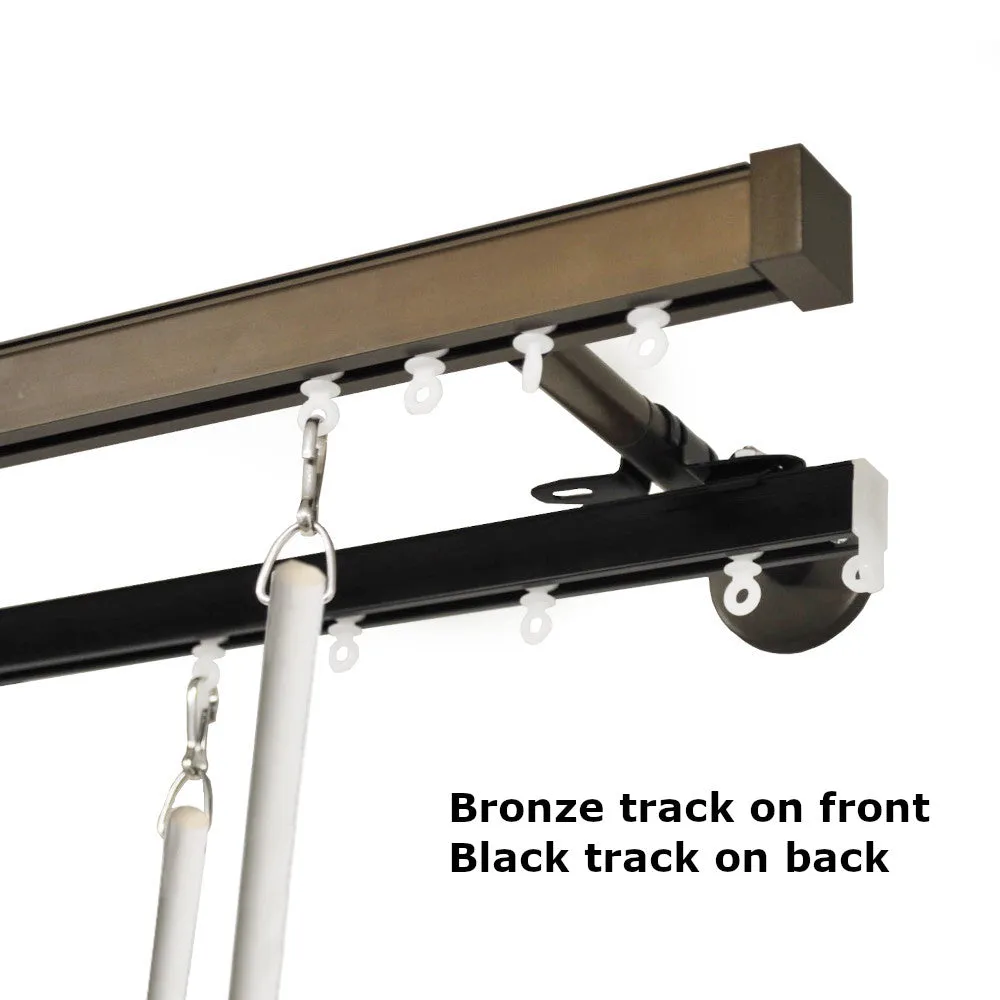

Heavy duty aluminum track set in a modern contemporary look. The Nexgen track on the front is 1" tall and 1" deep. The Euro track on the back is 3/4" tall and 5/8" deep.

When wall mounted, the bottom of the back Euro track is 1" below the bottom of the front Nexgen track.

When ceiling mounted, the bottom of the back Euro track is 1/4" above the bottom of the front Nexgen rod.

Ball bearing carriers are typically used with pleated draperies or curtains with . Swivel slides can also be used with pleated, wave or flat panels. Swivel slides with hooks can be used for grommet curtains.

The track is rated at 4 lbs per foot; for example, a 10 ft. track will hold a maximum of 40 lbs

Includes decorative end caps, decorative wall brackets, carriers/slides (3 1/2 per foot) and 4) 36" white batons. Ceiling clips are available, but only in zinc color. They bring the track almost flush to the ceiling. They show, but only slightly along the top edge of the track. If doing a ceiling mount, you must request the ceiling clips in the shopping cart instruction box.

Since this is a baton draw, you can use one panel as a one-way draw, two panels as a split draw, or multiple panels and draw them in any direction desired.

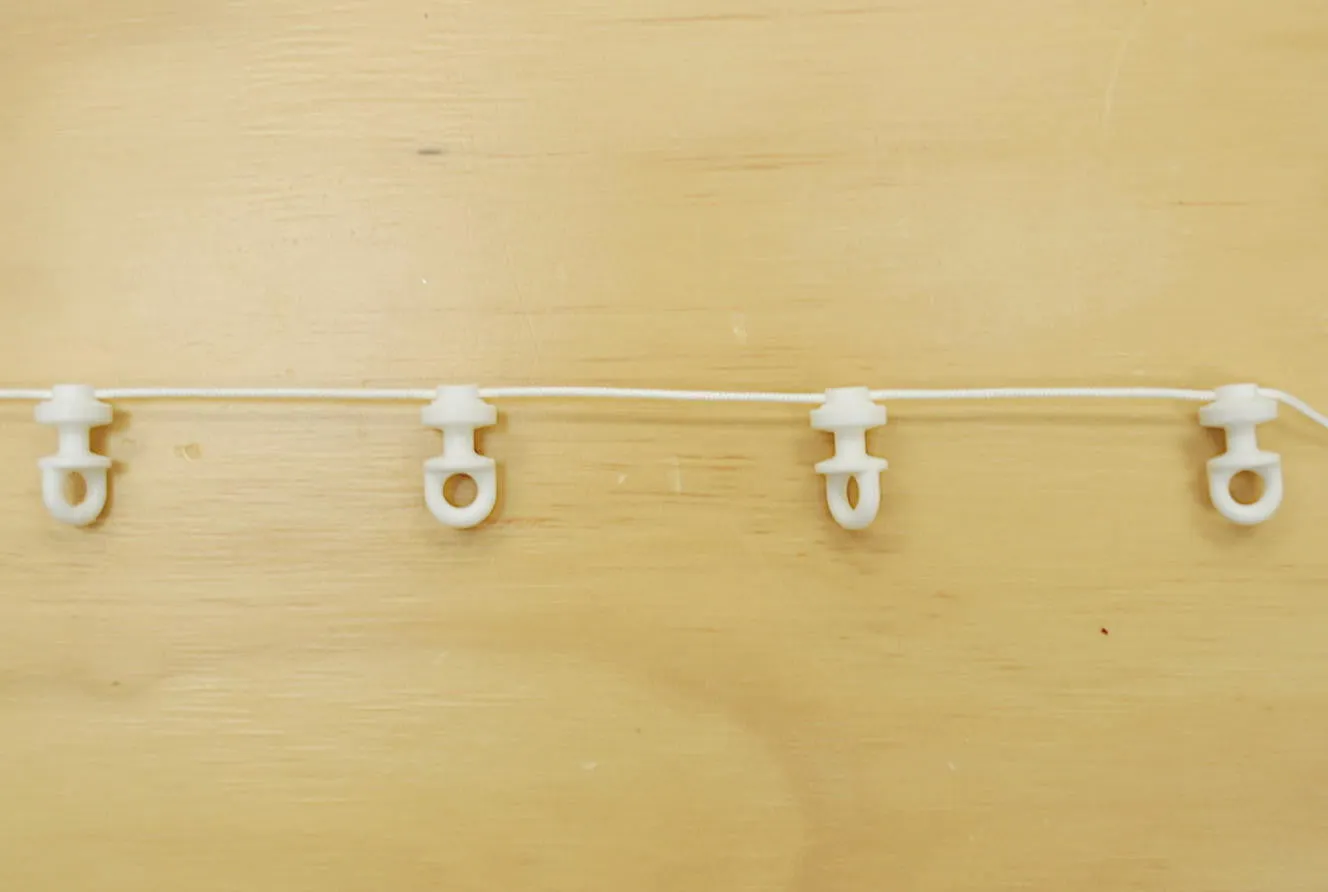

If Wavefold carriers are selected, you will receive the following quantities. This will often be more than required. Cut the string to remove the excess.

(60"-28)(84"-48)(95"-48)(108"-60)(132"-72)(156"-80)(180"-96)(204"-120)(228"-120)(252"-144)(276"-144)(300"-160)(336"-168)

Longer rods ship in multiple sections with hidden interior splices.

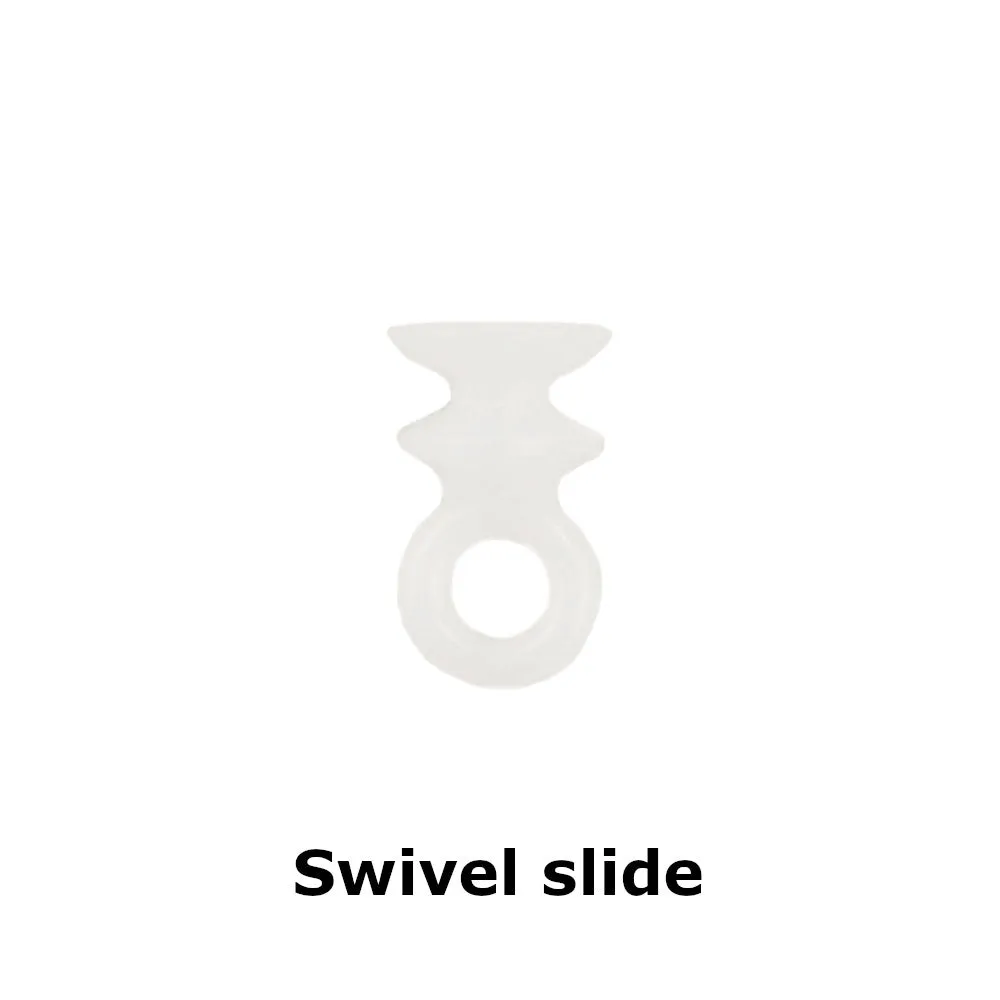

(select swivel slides)

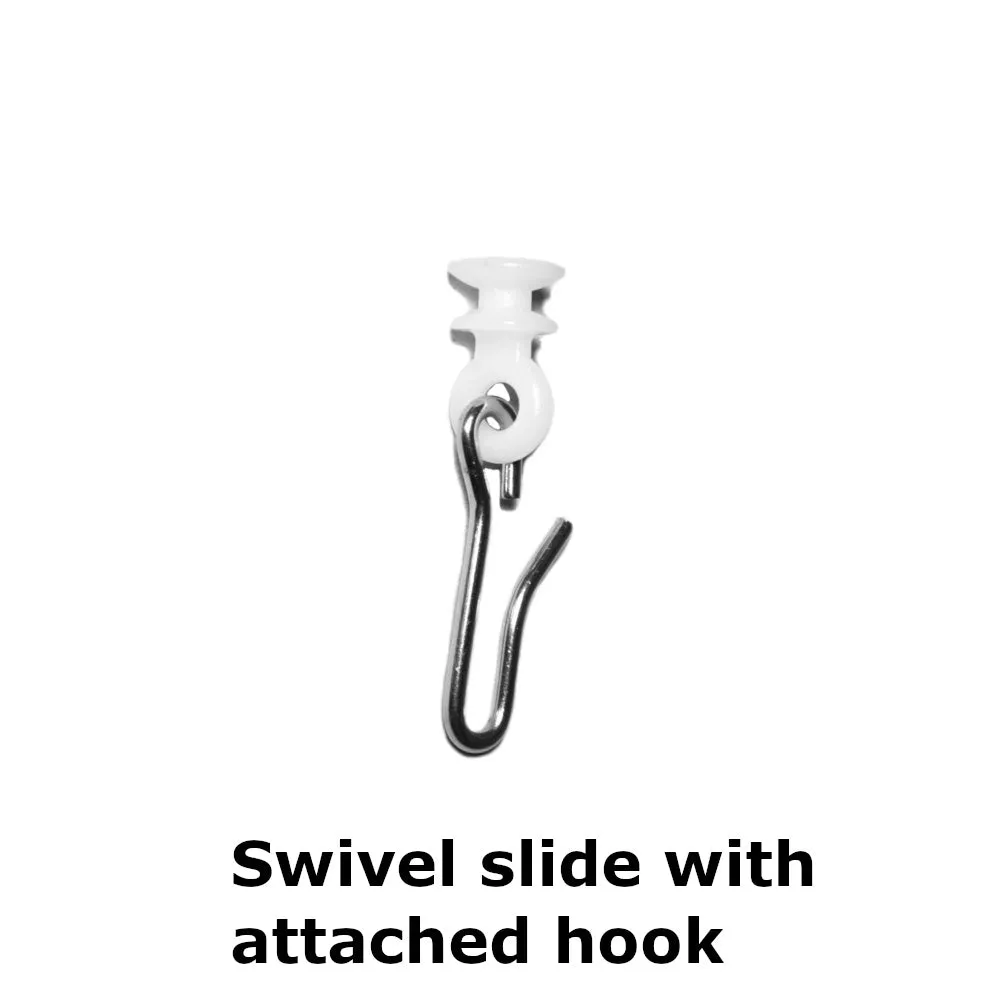

(select swivel slides w/ attached hook)
