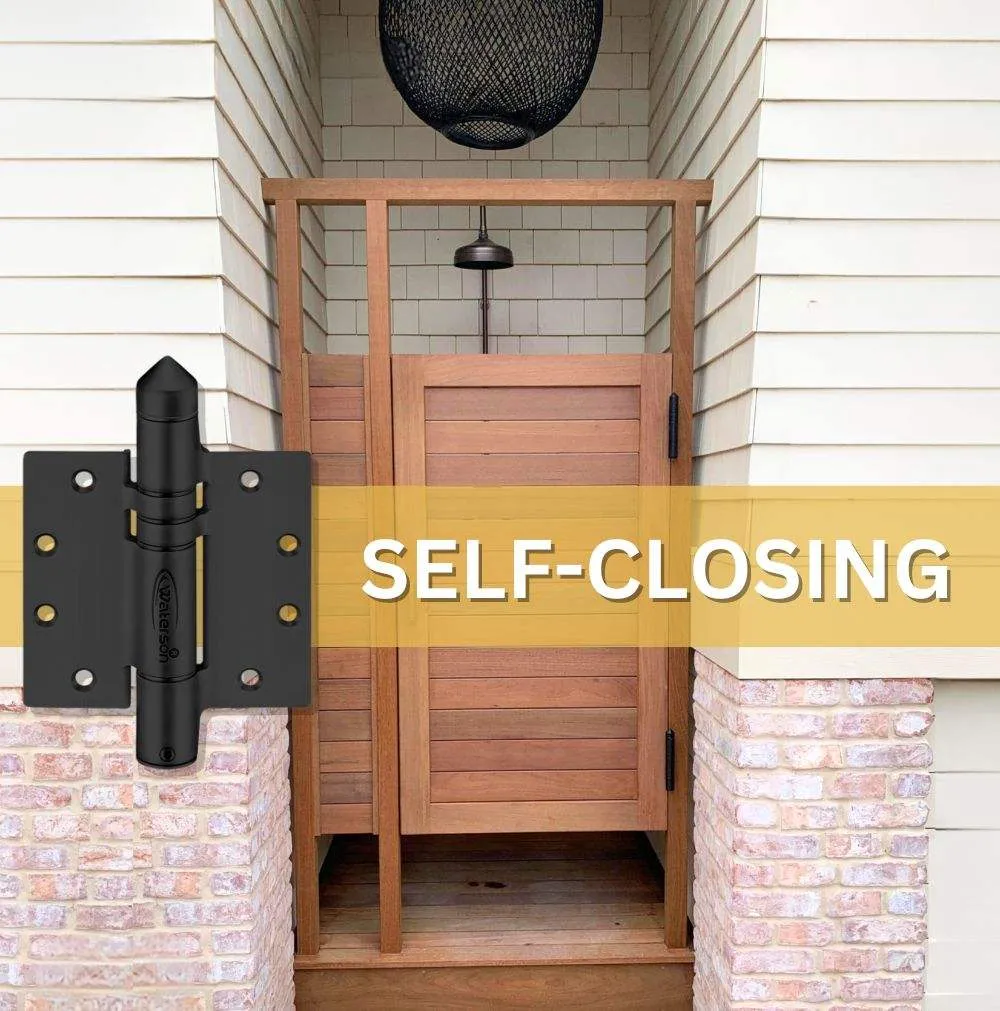

Applications
- Gate Entry
- Pool Gate

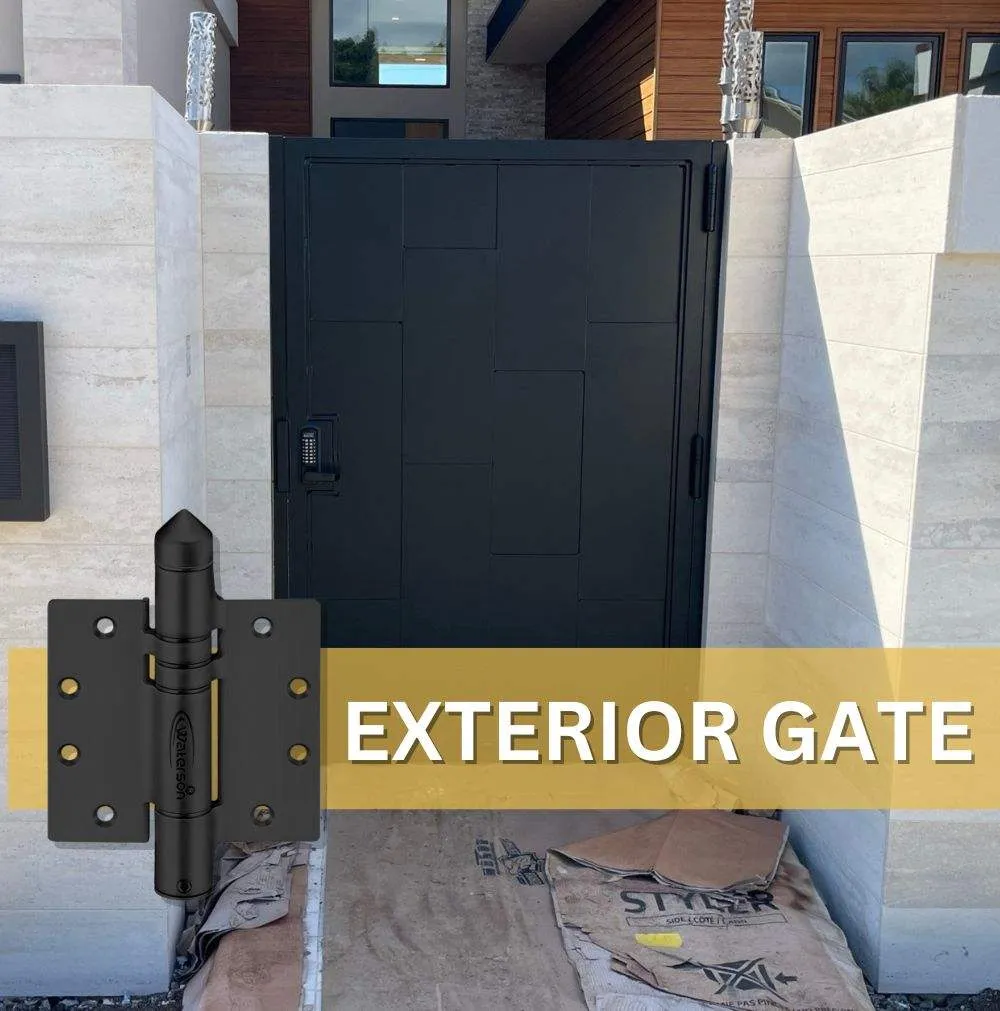

- Fully Exterior
- Courtyard Style
- Breezy environments
- What makes Waterson the best ? Find out now!
Product Description and Features
- Apply for door open ≤ 120° and environment temperature > 32°F (0°C)

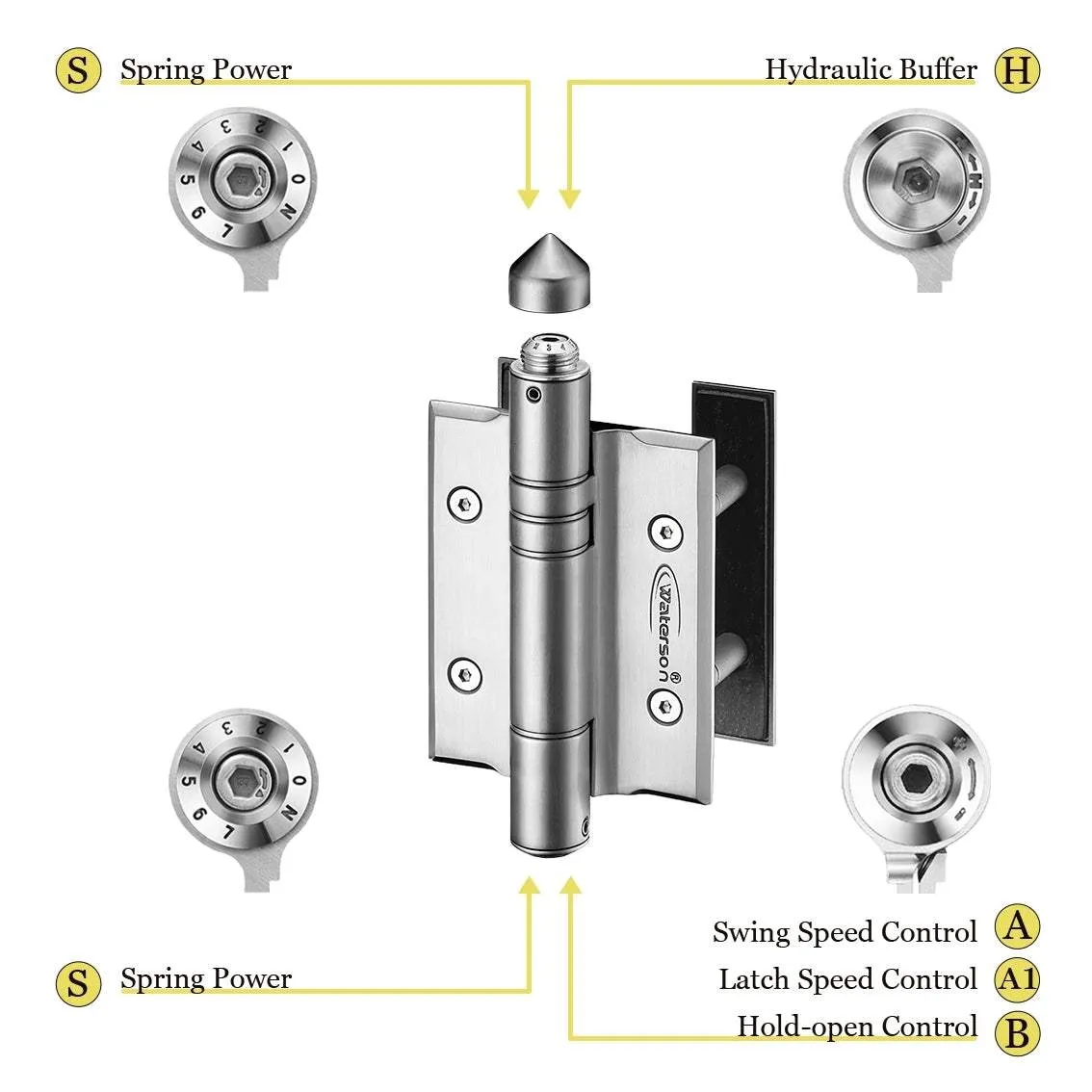

- Fully adjustable closing force and speed according to environment needs

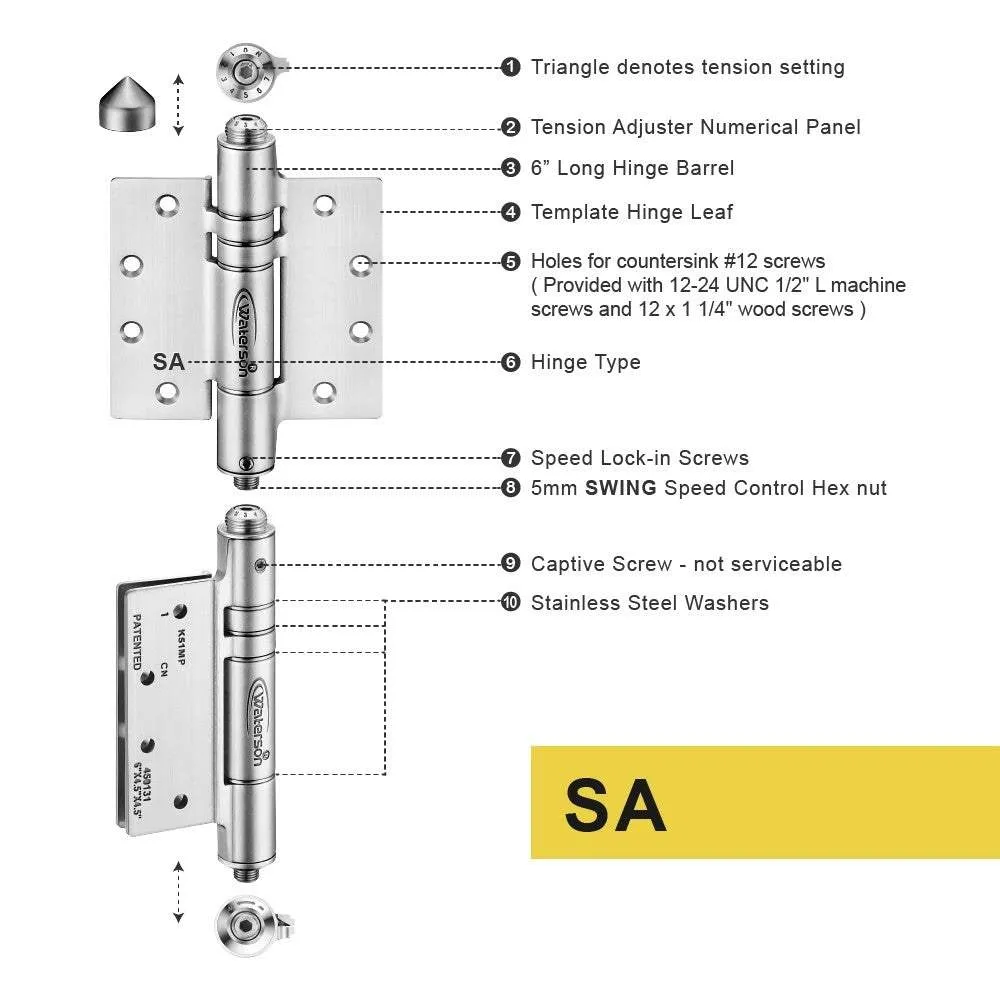

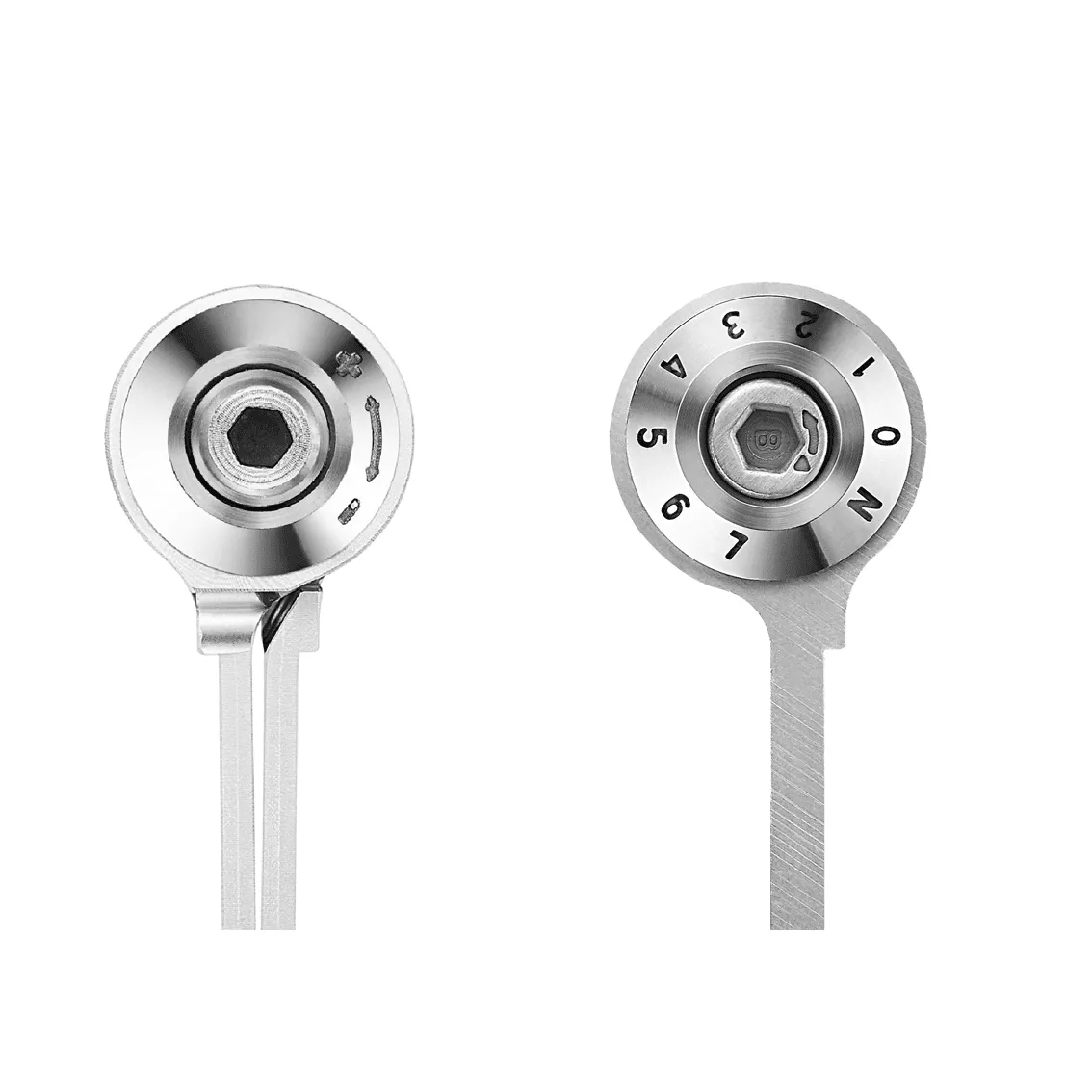

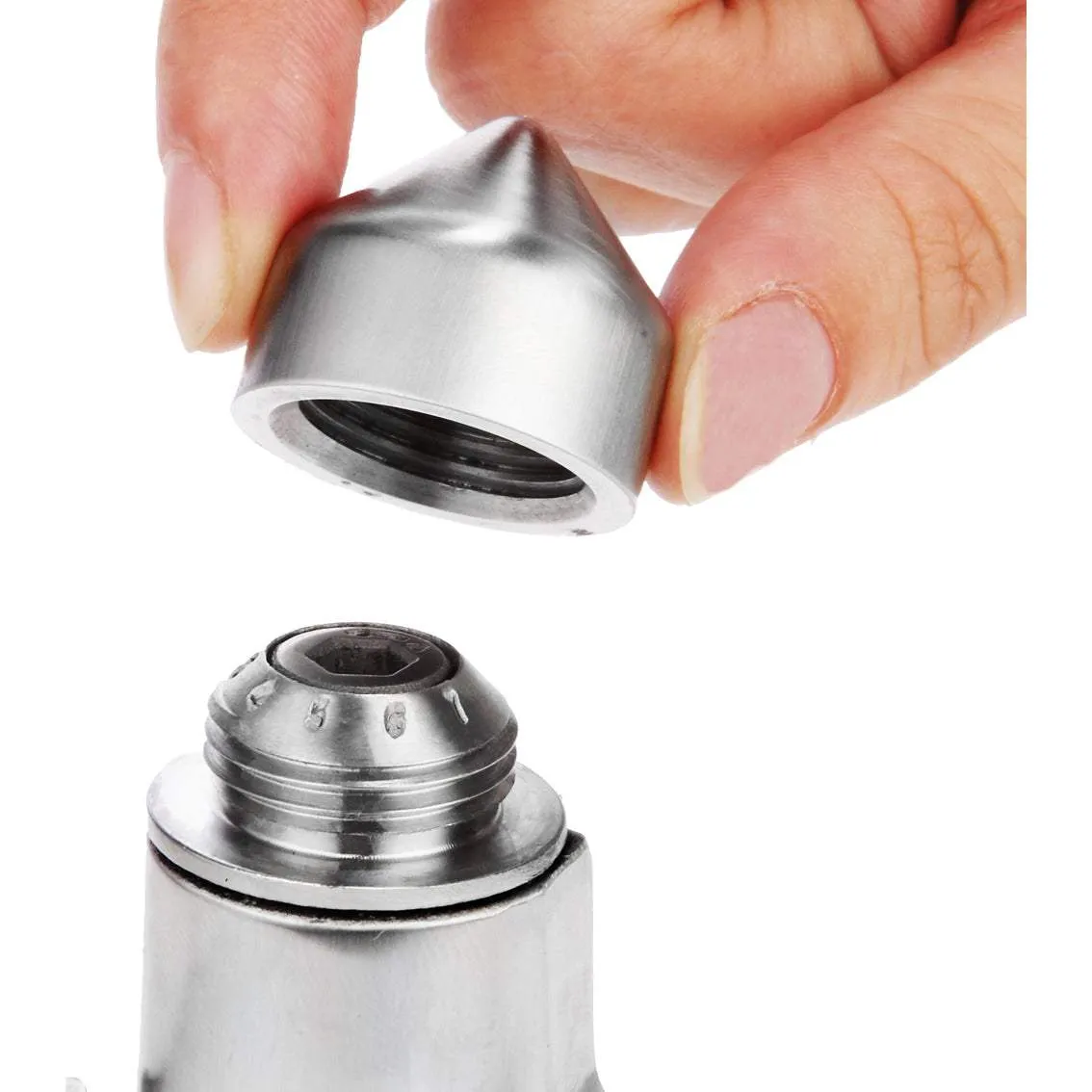

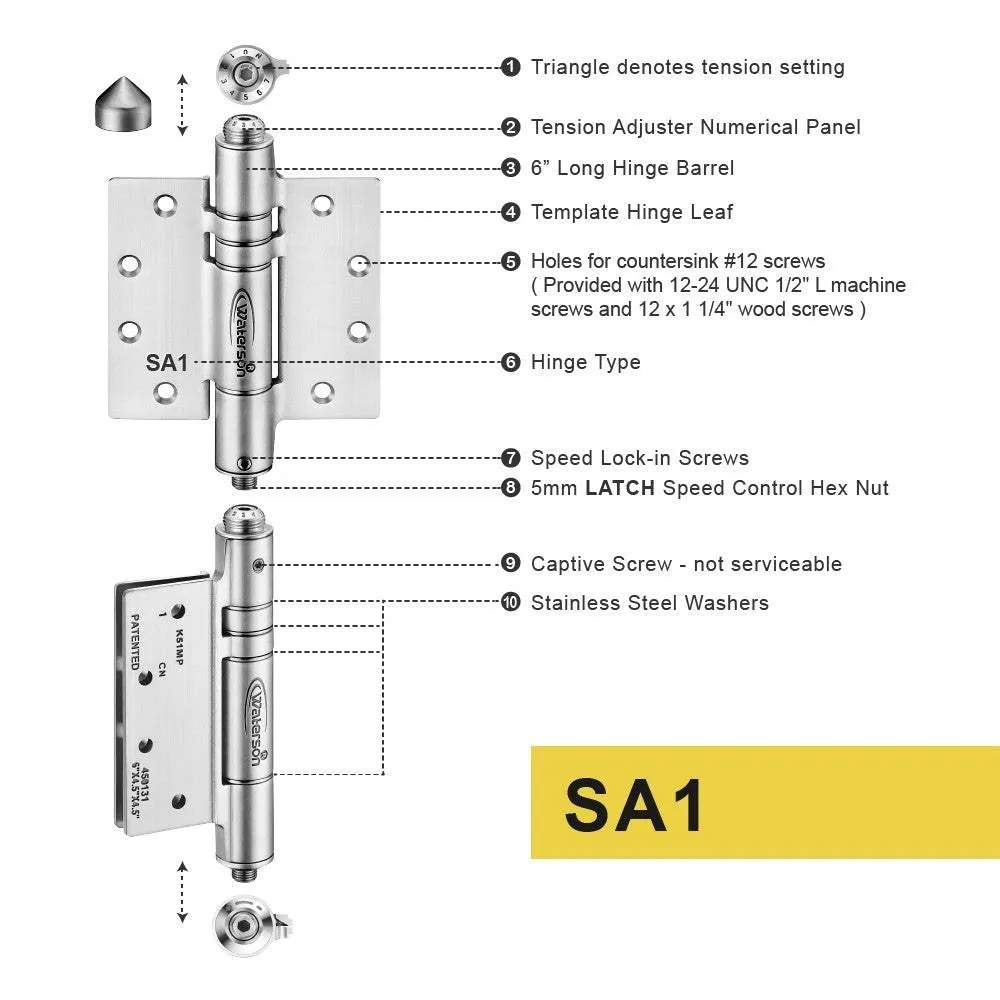

- Numerical adjustment panel on hinge end to set up precise tension
- Include both mechanical and hydraulic mechanism supporting quiet close needs
- Aesthetically pleasing compared to door closers -- without obtrusive arm
-

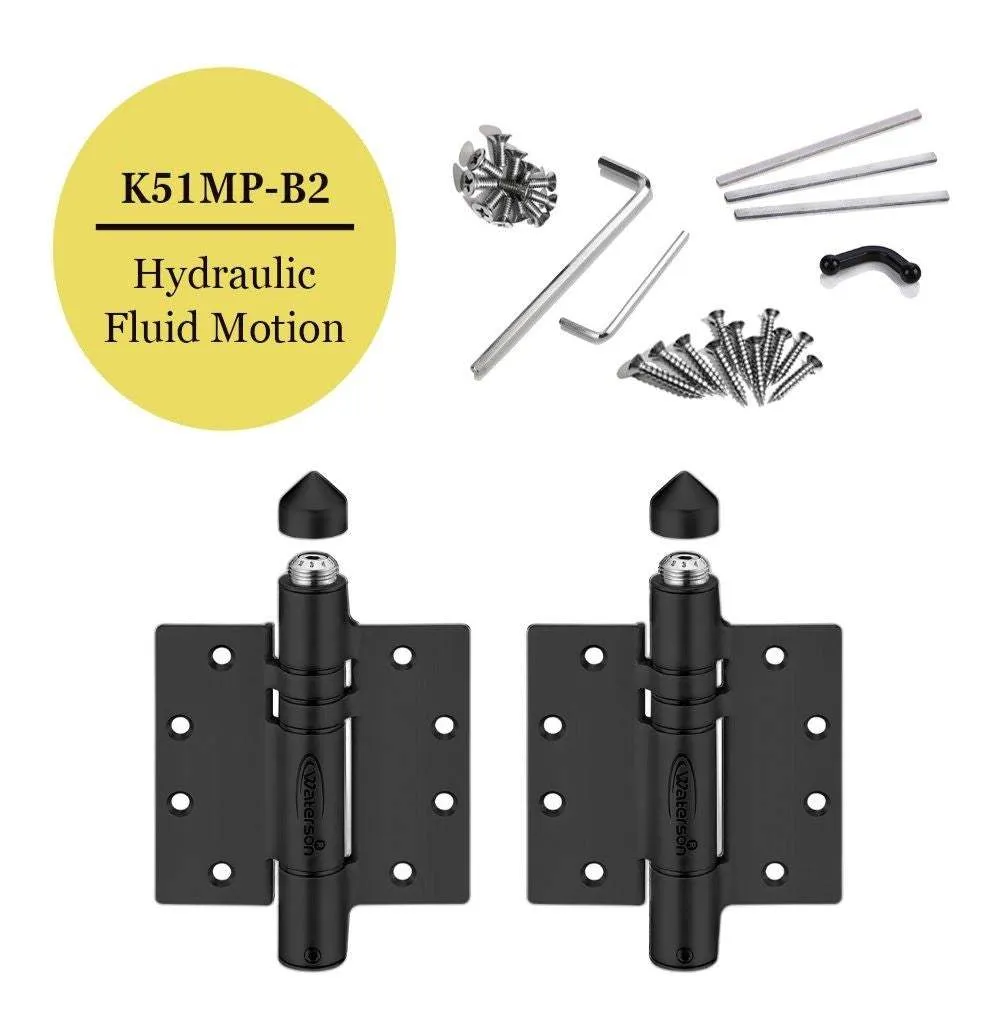

Installation Kits
- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Three steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches
Compliance Standards
- ANSI A156.17 Grade 1: one million cycle testing

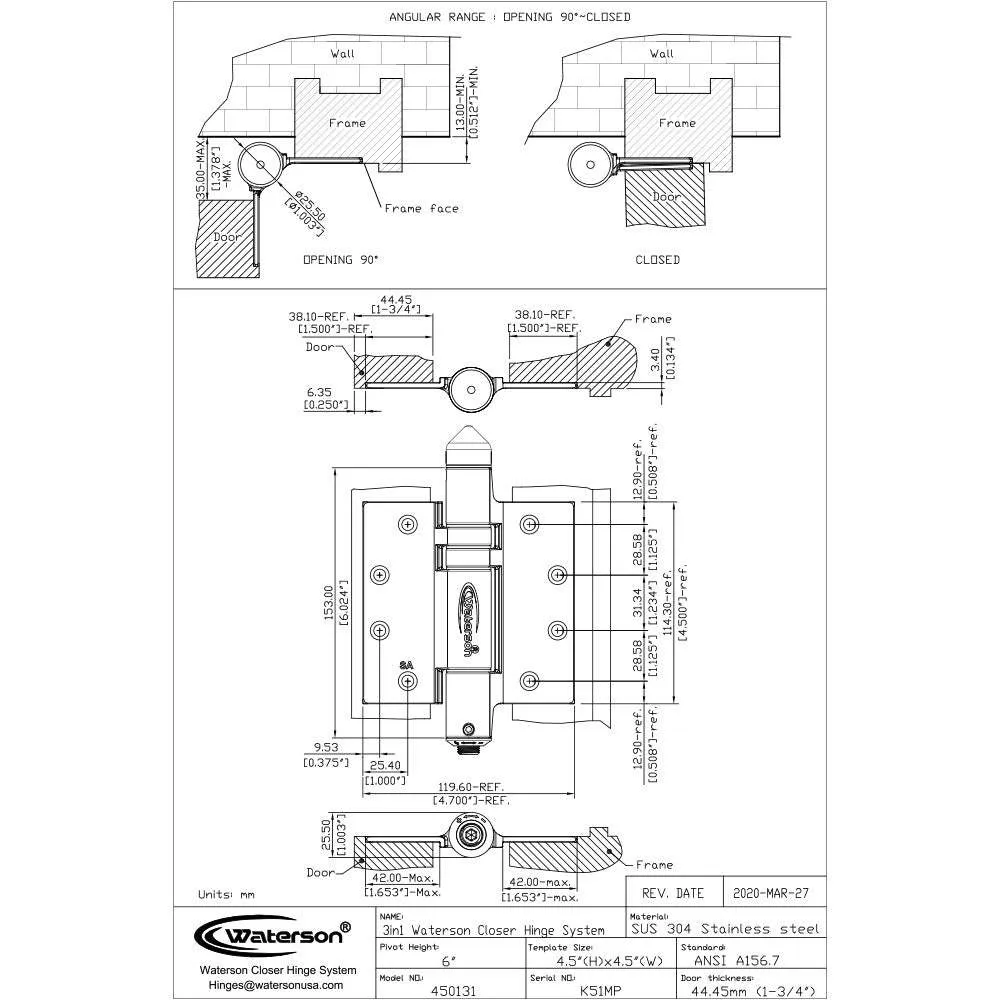

- ANSI A156.7 Template Hinge : 4 ½ x 4 ½
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force : opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
-

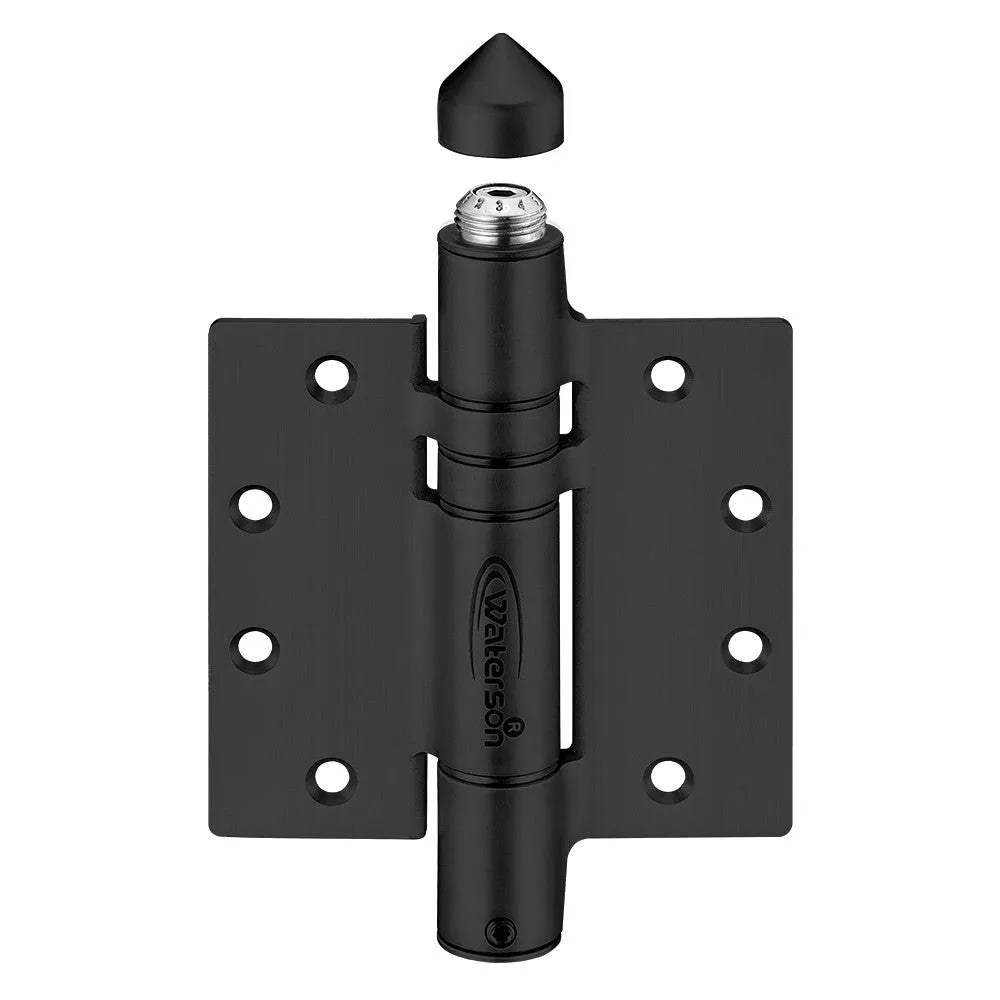

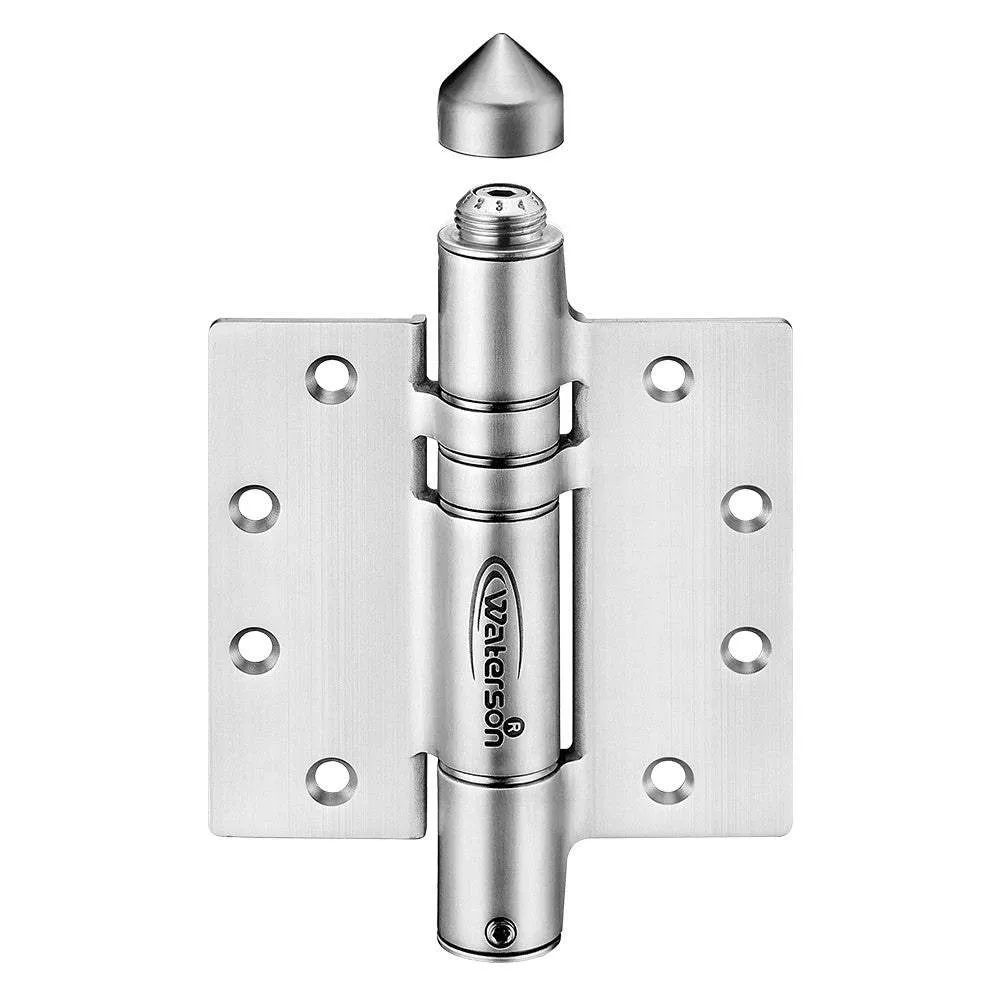

Product SKU K51MP-B2 Hinge Type Between square posts Hinge Material Stainless Steel Door Weight Up to 260lbs (75kg) Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Door Thickness 1 ¾” (40-50 mm) Self-closing o Fluid Motion o Hold-open x Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Satin Brushed,Black Combination/Quantity DS.HA, 2 Pack -
